Automatic fan DC motor outslot stator needle coil winding machine for brushless motor manufacturing
This automatic motor stator winding machine is designed for the fan Brushless DC motor manufacturing.
We can provide a series of motor manufacturing machines, such as slot paper inserting machine ,needle winding machine ,stator winding machine ,coil inserting machine, coil lacing machine, armature winding machine, armature turning machine, commutator spot welding machine, motor production assembly line, stator production line ,rotor production line ,armature production assembly line ,motor manufacturing machine, etc.
Each year, many of our customers would visit our company and factory, achieve great business advancements working with us. We always continually provide customers with the high-quality motor manufacturing machines,Rigorous and responsible customer service, and High-tech motor manufacturing design solutions. We sincerely welcome you to visit us at any time and together we will prevail to a greater success in the motor manufacturing production industry. Should you need anything, don't hesitate to contact us.
(1) Machine function and characteristic:

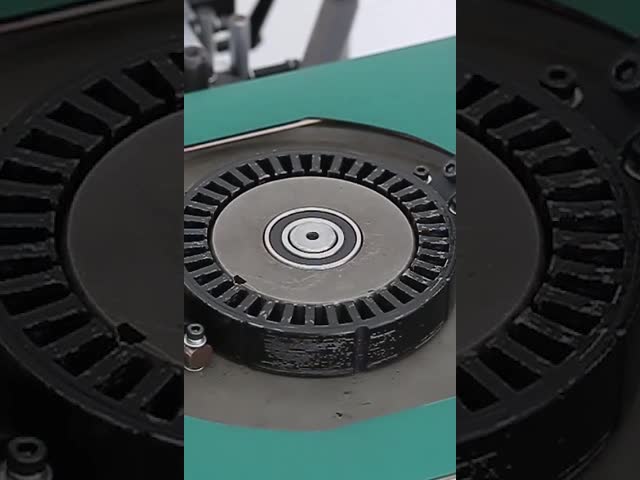

This automatic stator winding machine is designed for the Brushless DC motor outslot stator / external armature rotor coil winding. The automatic outslot stator coil winder adopts needle winding method. Each action cycle will wind 2 BLDC stator at the same time, greatly improved production efficiency. And the motor stator needle winding machine equipped with the servo control system, able to diagnose the fault, count the output etc. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed, easy for operation and maintenance.
(2) Application:
The motor outslot stator winding machine is suitable for Brushless DC motor manufacturing,such as fan motor,ceiling fan motor,table fan motor,Exhuast fan motor,hand generator,Radiator fan motor,Blower motor,etc,.
(3)Function and Characteristics:
1. The motor outslot stator winding machine is sutiable for multi-pole BLDC stator and external armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.
2. Full aluminum alloy protection.The frame adopts thickened aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
6. Quick change-overof tooling;(20 minutes with proficiency)
7. PLC control, fault display
9. Equipment safety index: accord with CE standard.
10. Efficiency: 120 rev / min.
11. Beat: 5 minutes / BLDC motor stator.
12. Noise: 60-70 decibels or less.
| Product name: | Automatic BLDC outslot stator needle winding machine |
| Type: | Automatic |
| Wire dia.: | 0.5-1.5mm(Can be specially designed) |
| Stator I.D.: | 20-80mm (Can be specially designed) |
| Stator O.D.: | 50-120mm(Can be specially designed) |
| Stack length: | 10-80mm(Standard stroke) 100-200mm(Long stroke, special customization) |
Applicable pole number : | multipolar |
| Motor winding mechod : | Out slot Needle winding technology |
| Winding stations : | Two |
| Spindle speeds : | 0-300 RPM (adjustable) |
| Voltage: | 380V/50HZ Three phase four wires |
| Air pressure: | 0.5-1Mpa |
| Power: | 20KW |
| Weight: | 600kg |
| Dimension: | 1200*1360*1800mm |
